High voltage SMPS PSU 48v 12.5a 600w ac/dc switching mode power supply 600 watt electrical transformer 48 volt led driver module

FOB Reference Price:Get Latest Price
US $24-40.76 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Steady
Model Number:
S-600-48
Output Power:
>500W
Output Type:
Single
Input Voltage:
110/220VAC selected by switch
Output Voltage:
48V
Output Frequency:
47-63HZ
Output Current:
12.5A
Certification:
CE
Express:
UPS, DHL, Fedex, EMS, TNT
Warranty:
2 Years
Size:
238*124*65mm (L*W*H)
Weight:
1.5kg
Case material:
Metal Aluminium
Type:
Constant Voltage
Application:
LED Light,CCTV Control,Electrical Appliances
Protections:
Short Circuit/Overload/Overvolt/Overtemp
Supply Ability
Supply Ability:
60000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
it is packed by vacuum plastic bag to provent moisture and then put into the inner box, 10pcs to a neutral carton.
Port
Ningbo or Shanghai
Lead Time :
Shipped in 14 days after payment
Welcome

Welcome,my friend! If you have any questions, please don't hesitate to ask us!

Notice
  1. If you want to buy sample or few  , here is our aliexpress store : steadypower.aliexpress.com
  2. Product order will be shipped as soon as possible, please be patient.
  3. if you have any needs please communicate with us .
  4. our catalog in the home page, pls check , our website : www.steady-power.com

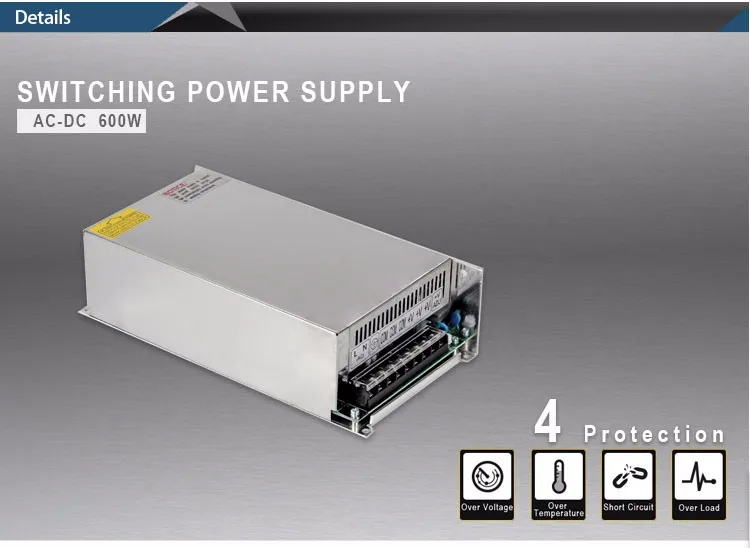

Product Description

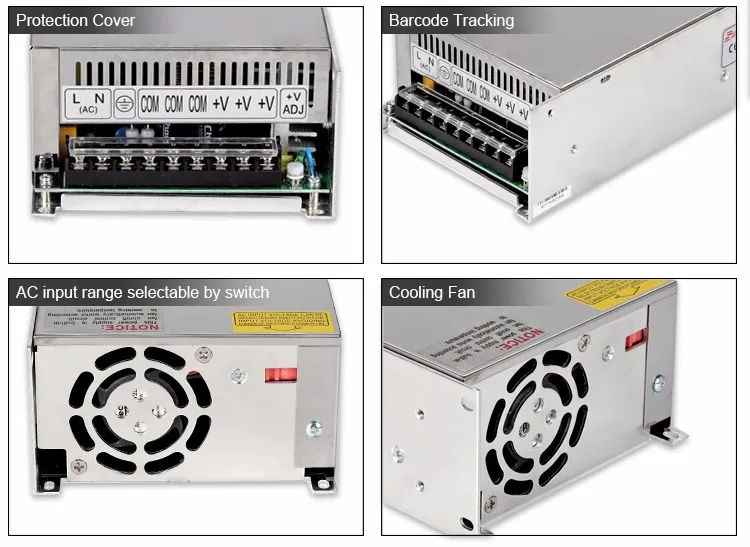

Features



 Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage/Over temp
• Forced air cooling by built-in DC fan
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
• 2 years warranty

Specification

Model S-600-12S-600-15S-600-24S-600-27S-600-48
OutputDC Voltage12V15V24V27V48V
Rated Current50A40A25A22.2A12.5A
Current Range0 ~ 50A0 ~ 40A0 ~ 25A0 ~ 22.2A0 ~ 12.5A
Rated Power600W600W600W600W600W
Ripple & Noise (max.)150mVp-p150mVp-p150mVp-p200mVp-p240mVp-p
Voltage Adj. Range10~13.2V13.5~18V20~26.4V26 ~ 32V41 ~ 56V
Voltage Tolerance±1.0%±1.0%±1.0%±1.0%±1.0%
Line Regulation±0.5%±0.5%±0.5%±0.5%±0.5%
Load Regulation±0.5%±0.5%±0.5%±0.5%±0.5%
Setup,Rise, Hold time200ms, 50ms, 20ms at full load
InputVoltage Range90 ~ 132VAC / 180 ~ 264VAC by switch          254 ~ 370VDC
Frequency Range47~63HZ
Efficiency(Typ.)74%78%81%82%83%
AC Current6.5A/115VAC          4A/230VAC
Inrush Current (max.)50A/115VAC          50A/230VAC
Leakage Current<3.5mA / 240VAC
ProtectionOver Load105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage5.75V~6.75V13.8V~16.2V15.5V~18.2V18 ~ 21V27.6 ~ 32.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
FunctionFan on/ off Control  RTH3 ≥55°c FAN ON,  ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V)
RTH3 ≥65°c FAN ON,  ≤55°c FAN OFF, 80°c output shutdown (12 ~ 15V)
RTH3 ≥70°c FAN ON,  ≤60°c FAN OFF, 85°c output shutdown (24 ~ 48V)
EnvironmentWorking Temperature-10 ~ +50°c (Refer to output load derating curve)
Working Humidity20~90% RH  Non-condensing
Storage temp.& humidity-20~+85°C, 10~95%RH
Temp. coefficient±0.03%/°C (0~50°C)
Vibration10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes
OthersMTBF234.3K hrs min.      MIL-HDBK-217F ( 25°c )
Dimension238*124*65mm (L*W*H)
Packing1.5Kg; 10pcs/15Kg/0.92CUFT
Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

Related Products

317_06

See Catalog >>>
AC-DCFeatures
S SeriesNormal Series
related item : S-600w
With PFC / Parallel function Series
related item : SP-600w
Important Notice

* These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs


• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
