Low noise 300w solar power inverter dc 12v ac 220v circuit diagram 300 watt wind grid tie 12 volt pure sine wave inverter

FOB Reference Price:Get Latest Price
US $22-31.63 / Pieces | 1 Piece/Pieces 300w power inverter dc 12v ac 220v circuit diagram (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NONE
Model Number:
P-300W
Output Power:
500 - 1000W
Output Type:
Single
Size:
186*106*63mm
Weight:
0.695kg
Input Voltage:
12V
Output Voltage:
AC220V
Type:
DC/AC Inverters, Pure sine wave inverter
Output Frequency:
50Hz/60Hz
Output Current:
Load
G.W:
0.92kg
Packing Size:
235*143.5*82mm
Rated power:
300W
Warranty:
2 Years
Color:
gold
Charging function:
NO
Application:
Solar System,Home
Protection:
Short Circuit,Overload,Overtemp,Overvolt
Product name:
300w power inverter dc 12v ac 220v circuit diagram
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month 300w power inverter dc 12v ac 220v circuit diagram
Packaging & Delivery
Packaging Details
neutral package or to be packed by vacuum plastic bag to provent moisture and then put into the inner box,30pcs to a neutral carton.
Port
Shanghai or Ningbo
Lead Time :
Shipped in 7 days after payment
Welcome

Welcome,my friend! If you have any questions, please don't hesitate to ask us!

Notice
  1. If you want to buy sample or few  , here is our aliexpress store : steadypower.aliexpress.com
  2. Product order will be shipped as soon as possible, please be patient.
  3. if you have any needs please communicate with us .
  4. our catalog in the home page, pls check , our website : www.steady-power.com


Product Description

Product Details

Products Features :
- Input & output fully insolated.
- High surge: high starting surge current withstand capability for loads like fridge, camps, motors and other inductive loads.
- Grounding Protection: there is terminal in front of panel for ground connection
- Soft start: smooth start-up of the appliances.
-Output waveform: pure sine wave power for inductive loads.
- Very stable AC output, the waveform is even better than the power supplied by your utility.
- Cooling fan works automatically when inverter becomes too hot, it turns off automatically when the temperature is reduced.
- Low total harmonic distortion: below 3%.
- Two LED indicators on the front panel showing the working and failure status

ModelP-300-121P-300-241P-300-481P-300-122P-300-242P-300-482
Rated power300W
Peak power600W
Input voltageDC12VDC24VDC48VDC12VDC24VDC48V
Output voltage100VAC or 110VAC or 120VAC±5%220VAC or 230VAC or 240VAC±5%
Unload current less than0.3A0.2A0.2A0.3A0.2A0.2A
Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
Output waveformPure Sine Wave
Waveform distortionTHD<3%(Linear load)
USB port5V 1A
Max.efficiency90%
Input voltage range10-15.5V20-31V40-61V10-15.5V20-31V40-61V
Low voltage alarm10.5±0.5V21±0.5V42±1V10.5±0.5V21±0.5V42±1V
Low voltage protection10±0.5V20±0.5V40±15V10±0.5V20±0.5V40±15V
Over voltage protection15.5±0.5V31±0.5V61±1V15.5±0.5V31±0.5V61±1V
Low voltage recover13±0.5V24±0.5V48±1V13±0.5V24±0.5V48±1V
Over voltage recover14.8V±0.5V29.5V±0.5V59V±1V14.8V±0.5V29.5V±0.5V59V±1V
Protection functionLow voltageAlarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltageLED Red light on, shut down
Over loadLED Red light on, shut down
Over temperatureAlarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuitLED Red light on
Input reverse polarityFuse burn-out
Working temperature-10°- +50°
Storage temperature-30°- +70°
Dimension(mm)205*113*59mm
Net./gross weight(g)860/940g
Warranty1 years
ConfigurationStandard
Cooling methodIntelligent air cooling
NoteOur products update constantly.
The technical parameter is for reference only,please refer to our real product.

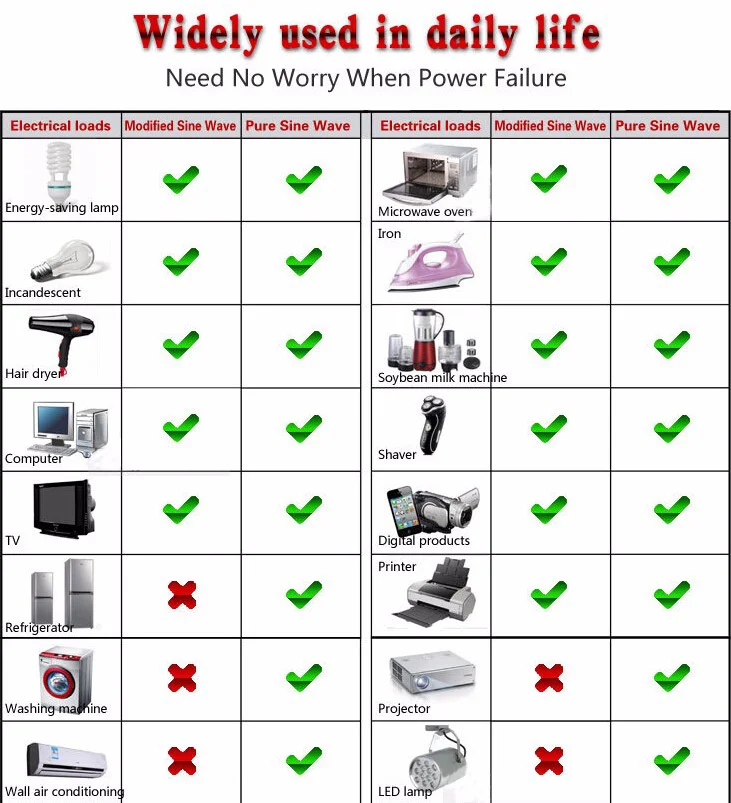

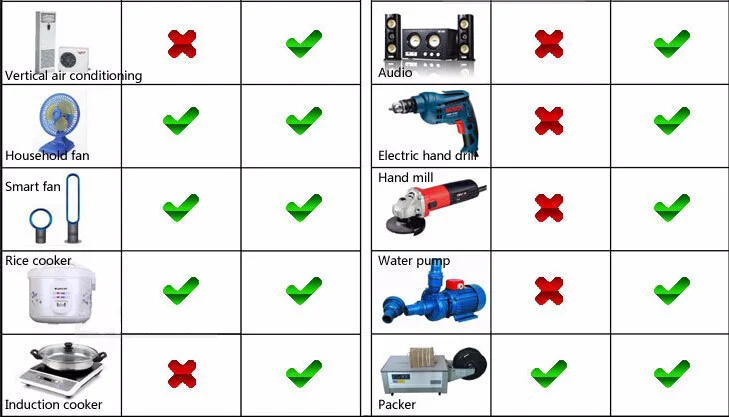

Inverter application
