NES-15-24 CE approved mini size 15w 5v 12v 15v 24v 48v ac dc high performance switching power supply 220v power transformer

FOB Reference Price:Get Latest Price
US $3-4.65 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
60000 Piece/Pieces per Month
Port:
Ningbo/shanghai/shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Steadypower
Model Number:
NES-15-24
Output Power:
1 - 50W
Output Type:
Single
Input Voltage:
85-264VAC 120-370VDC
Output Voltage:
24V
Output Frequency:
47~63Hz
Output Current:
0.625A
Certification:
CE
Guarantee:
2 years
Case material:
Aluminium
Dimension:
78*51*28mm (L*W*H)
G.W:
0.18kg
Type:
Constant Voltage
Application:
LED Light,CCTV Control,Electrical Appliances
Packaging & Delivery
Packaging Details
it is packed by vacuum plastic bag to provent moisture and then put into the inner box, 60pcs to a neutral carton.
Delivery Time
Shipped in 20 days after payment
Welcome

Welcome,my friend! If you have any questions, please don't hesitate to ask us!

Notice
  1. If you want to buy sample or few  , here is our aliexpress store : steadypower.aliexpress.com
  2. Product order will be shipped as soon as possible, please be patient.
  3. if you have any needs please communicate with us .
  4. our catalog in the home page, pls check , our website : www.steady-power.com



Product Description

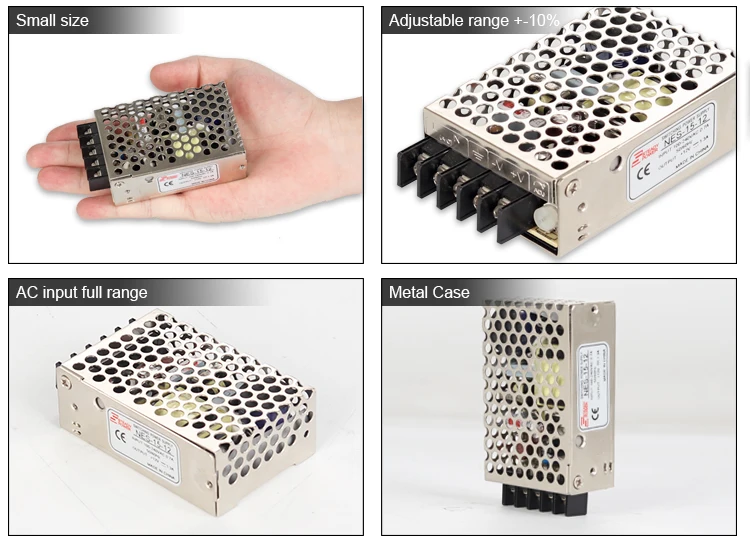

Features

• Universal AC input/Full range

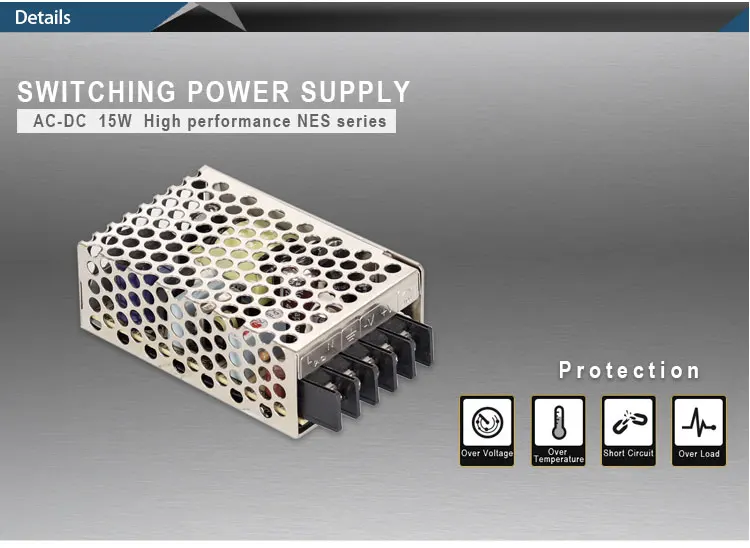

• Protections: Short circuit / Overload / Over voltage

• Cooling by free air convection 100% full load burn-in test

• 2 years warranty

Specification

   MODEL

NES-15-5

NES-15-12

NES-15-15

NES-15-24

NES-15-48

     OUTPUT

DC VOLTAGE

5V

12V

15V

24V

48V

RATED CURRENT

3A

1.25A

1A

0.625A

0.3A

CURRENT RANGE

0~3A

0 ~ 1.25A

0 ~ 1A

0 - 0.625A

0 - 0.3A

RATED POWER

15W

15W

15W

15W

15W

RIPPLE & NOISE (max.)

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 -13.2V

13.5-16.5V

21.6-26.4V

43.2 - 52.8V

VOLTAGE TOLERANCE

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

100ms/230VAC 20ms/115VAC at full load

       INPUT

VOLTAGE RANGE

85 ~ 264VAC 120-370VDC

FREQUENCY RANGE

47 - 63Hz

EFFICIENCY (Typ.)

79%

81%

81%

85%

82%

AC CURRENT (Typ.)

0.35A/115VAC 0.25A/230VAC

INRUSH CURRENT (Typ.)

COLD START45A

LEAKAGE CURRENT

<2mA/240VAC

 PROTECTION

OVERLOAD

Above 105% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

OVERVOLTAGE

5.75 - 6.75V | 13.8 ~ 16.2V | 17.25- 20.25V | 27.6 - 32.4V | 55.2 - 64.8V

Protection type: Shut off

OVER TEMPERATURE

U1 Tj 140°C typically (U1) detect on main control IC

Protection type: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

-20 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 -+85°C, 10-95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 45°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

      OTHERS

MTBF

563.5Khrs min. MIL-HDBK-217F (25°C)

DIMENSION

78*51 *28mm(L*W*H)

PACKING

0.18Kg; 60pcs/14.8Kg/0.46CUFT

Important Notice

* These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
