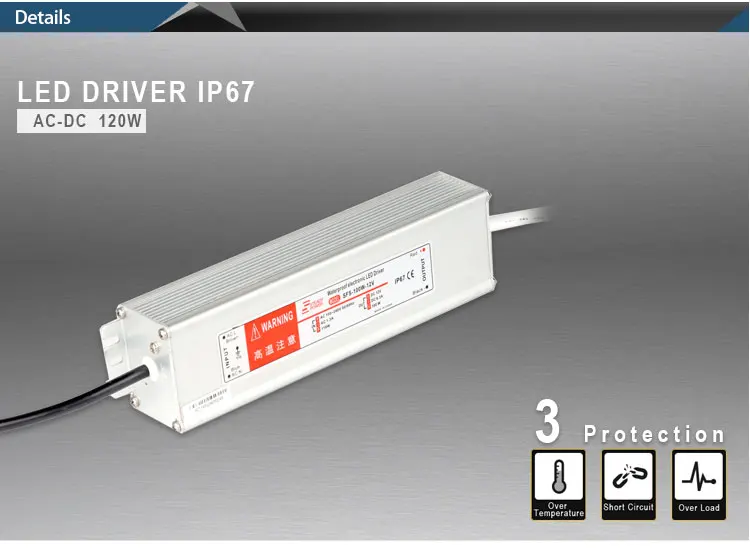

110V/220V constant voltage 120W 5V 12V 15V 24V 48V dc regulated Led driver 120W switching waterproof mode power supply SFS-120W

FOB Reference Price:Get Latest Price
US $13-16.74 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Output Power:
101 - 200W
Output Type:
Input Voltage:
Output Frequency:
Output Current:
Shortcuit Overtemp Overload
Case material:
Metal Aluminum
190*53*40mm (L*W*H)
2 Years
Waterproof Led Driver
TV,LED ect.
Output Voltage:
Supply Ability
Supply Ability:
60000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
it is packed by vacuum plastic bag to provent moisture and then put into the inner box,30 pcs to a neutral carton.
Shanghai or Ningbo

Welcome,my friend! If you have any questions, please don't hesitate to ask us!

  1. If you want to buy sample or few  , here is our aliexpress store : steadypower.aliexpress.com
  2. Product order will be shipped as soon as possible, please be patient.
  3. if you have any needs please communicate with us .
  4. our catalog in the home page, pls check , our website : www.steady-power.com


Product Description

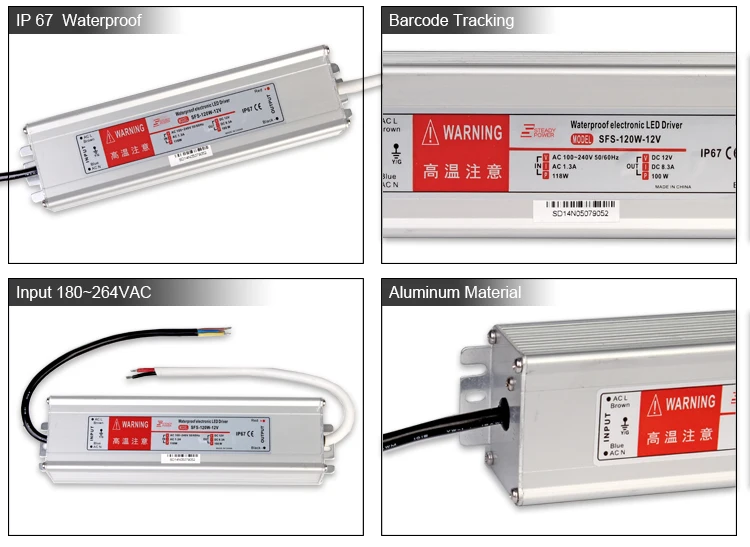

• Constant voltage design

• Universal AC input / Full range

• Fully encapsulated with IP67 level
• Protections: Short circuit / Over load / Over temp
• Fully isolated plastic case

• Cooling by free air convection

• 100% full load burn-in test

• Low cost, high reliability

• Suitable for LED lighting and moving sign applications

• 2 years warranty

Model SFS-120-12SFS-120-15SFS-120-24SFS-120-36SFS-120-48
OutputDC Voltage12V15V24V36V48V
Rated Current10A8A5A3.3A2.5A
Current Range0~10A0~8A0~5A0~3.3A0~2.5A
Rated Power120W120W120W120W120W
Ripple & Noise (max.)120mVp-p120mVp-p150mVp-p150mVp-p150mVp-p
Voltage Tolerance ±5.0%±5.0%±5.0%±5.0%±5.0%
Line Regulation±1.0%±1.0%±1.0%±1.0%±1.0%
Load Regulation±2.0%±2.0%±2.0%±2.0%±2.0%
Setup,Rise time2000ms, 20ms / 230VAC    2000ms, 25ms / 115VAC
Hold time (Typ.)50ms/230VAC          14ms/115VAC at full load
InputVoltage Range 90 ~ 264VAC  127 ~ 370VDC
Frequency Range47~63HZ
AC Current(Typ.)2.2A/115VAC     1.2A/230VAC
Inrush Current (max.)COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
Leakage Current0.25mA / 240VAC
ProtectionOver Load110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

13.8 ~ 16.2V  17.25 ~ 20.25V  27.6 ~ 32.4V  41.4~48.6V55.2~64.8V
Protection type : Shut down o/p voltage, re-power on to recover
EnvironmentWorking Temperature-25 ~ +70°c (Refer to "Derating Curve" )
Working Humidity20~90% RH  Non-condensing
Storage temp.& Humidity-40~+80°C, 10~95%RH
Temp. coefficient±0.03%/°C (0~50°C)
Vibration10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OthersMTBF703Khrs min.      MIL-HDBK-217F (25°c)
Dimension190*53*40mm (L*W*H)
Packing0.9Kg; 30pcs/25.5Kg/0.56CUFT


Important Notice

* These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
